BLE Device Manager Overview

The BLE Device Manager in OvApp provides Bluetooth-based tools for inspecting, diagnosing, and activating OVES devices. It contains two main areas, each designed for a different audience and use case.

---

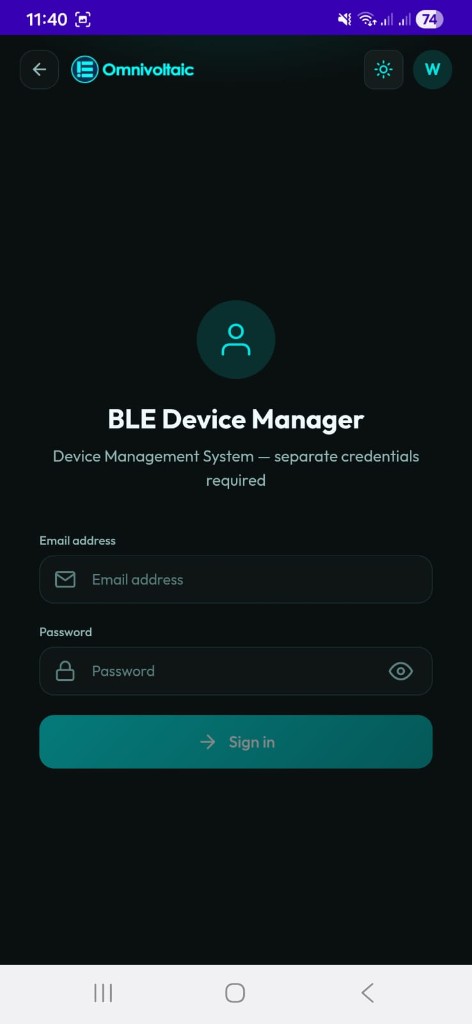

Login

A login is required to access the BLE Device Manager. Users must authenticate with their credentials before they can scan, connect to, or interact with any devices.

Assets (BLE Devices)	My Devices

---

Two Areas

Area	Location	Audience	Purpose
BLE Devices	Assets	Distributors	Full diagnostic and inspection tool — see everything about a device at a low level
My Devices	My Devices	Distributors/ Factory Staff	Streamlined activation tool — activate or reactivate a device quickly without navigating raw service data

---

Shared Connection Flow

Both areas share the same Bluetooth scanning and connection experience:

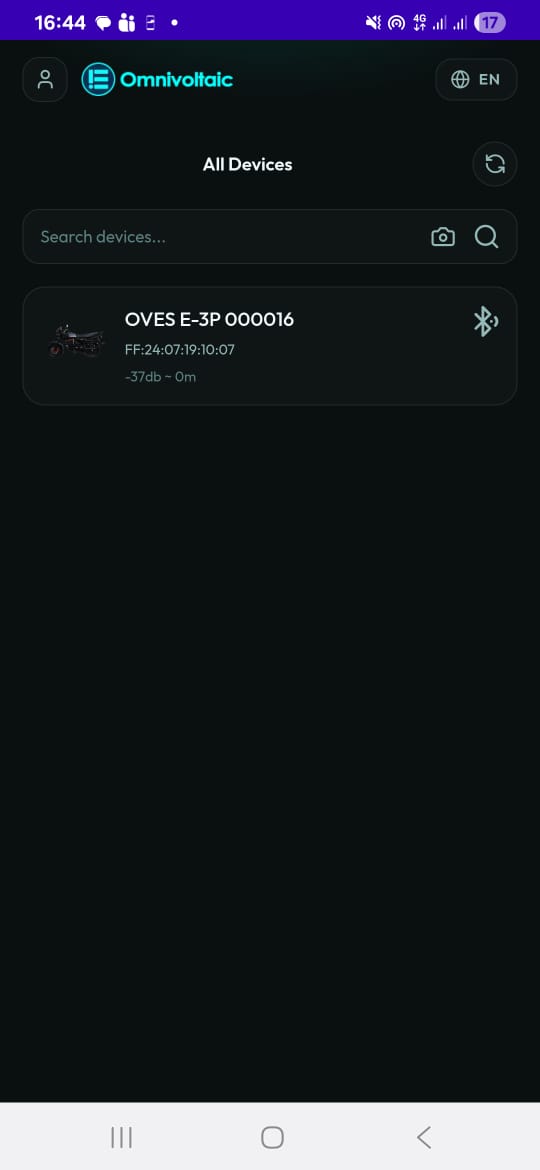

1. Scan — your phone scans for nearby OVES devices via Bluetooth.
2. Device list — discovered devices are listed with their name, product image, signal strength, and MAC address.
3. Connect — tap a device, search by name, or scan its QR code to connect.

Once connected, the two areas diverge:

• BLE Devices opens a detailed view with six service tabs (ATT, CMD, STS, DTA, DIA, HB).

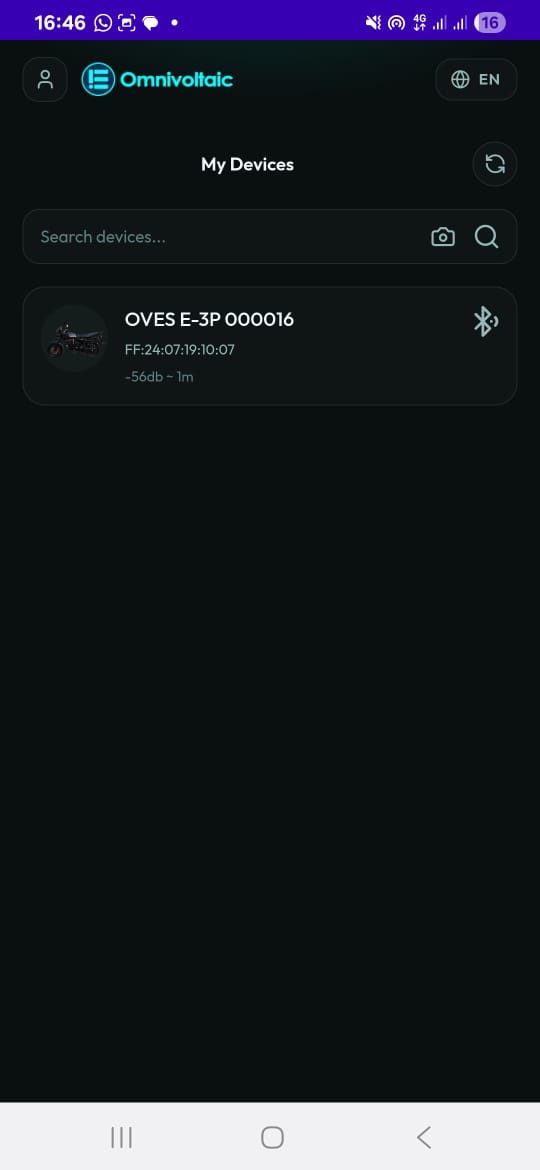

• My Devices opens a focused activation screen with code generation and duration selection.

---

When to Use Which

Scenario	Use
Inspect a device's serial numbers, firmware, or identity	BLE Devices
Read battery voltage, capacity, energy, or cell diagnostics	BLE Devices
Write an activation code or change device configuration	BLE Devices (CMD tab)
Send a device heartbeat to the server for remote monitoring	BLE Devices (HB tab)
Quickly activate a device	My Devices
Re-apply an activation code that failed to write	My Devices (Retrieve Last Code)
Generate a new activation code for a chosen duration	My Devices

---

Getting Started

Use the sidebar to navigate to either Assets or My Devices for detailed documentation on each area.
